Orbit Input Extender

  • 32 programmable inputs for buttons, joysticks, and sensors
  • 3 operation modes: USB keyboard, dual gamepad, and dual Xinput
  • Configurable via dedicated software, settings retained after power-off
  • Sturdy 5 mm screw terminals and built-in diagnostic LED
  • Compatible with Windows, macOS, Linux, and Proxima without specific drivers
Category:
Description
Applications
Specifications

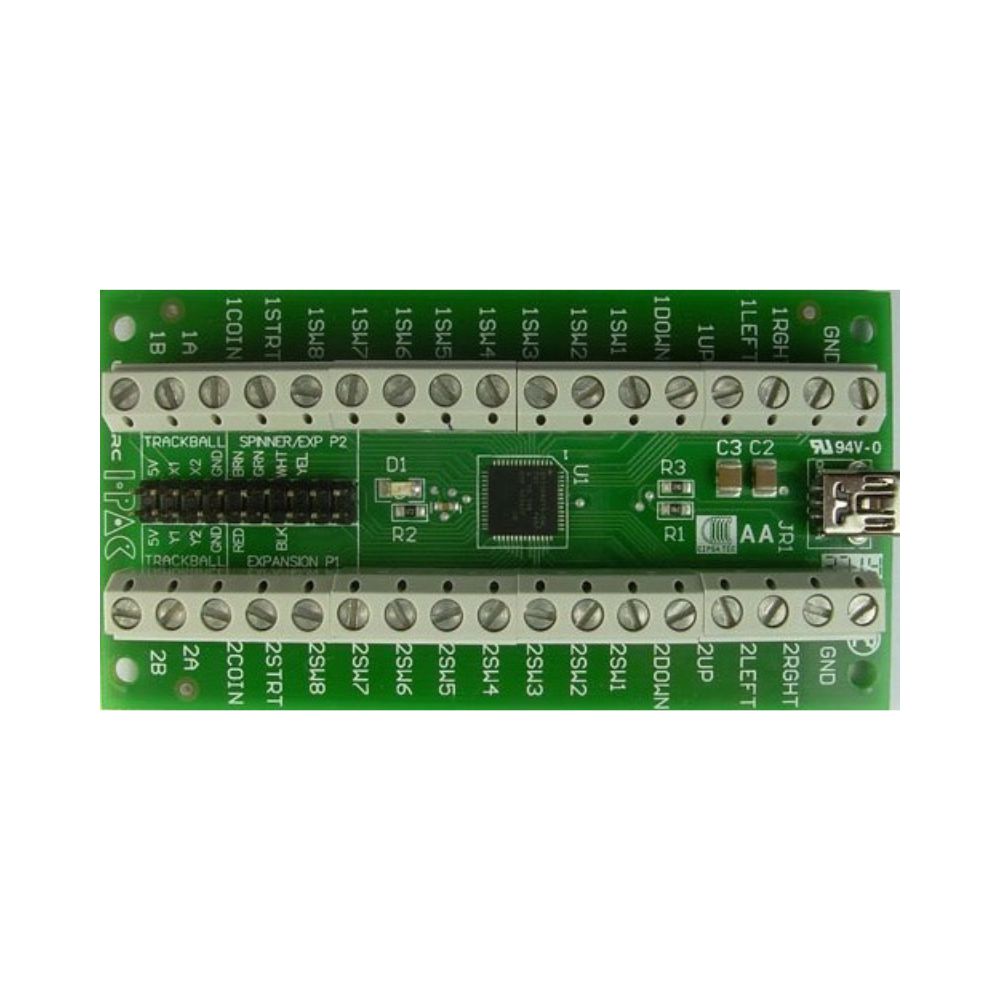

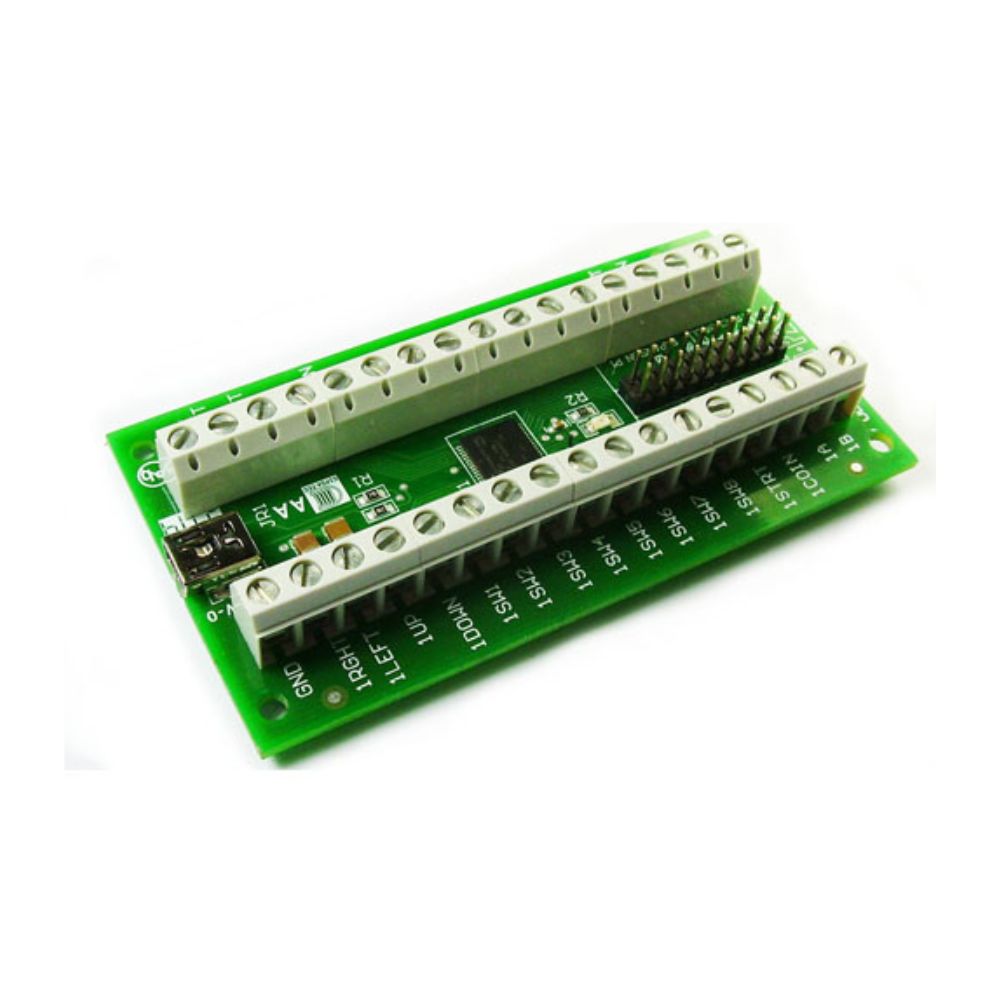

Orbit Extender is a 32-input USB extension module designed for interactive installations in museums, exhibitions, and themed attractions. Fully compatible with the Proxima media server and the Waves System ecosystem, it allows easy connection of buttons, joysticks, sensors, or any wired triggers via robust screw terminals.

The module offers three operation modes — keyboard, gamepad, and Xinput — ensuring seamless integration within various software or hardware setups. Its intuitive configuration via the WinIPAC software enables quick programming of inputs, with settings securely stored in flash memory, even after power-off.

Equipped with a diagnostic LED for instant feedback on wiring status and input faults, Orbit Extender ensures reliable and efficient installation for integrators. It supports both standard and custom key mappings and features a programmable Shift function for assigning secondary functions without additional control buttons.

  • Interactive kiosks for museums and exhibitions
  • Immersive scenography and themed attraction installations
  • Video mapping control via physical triggers and sensors
  • Custom arcade or interactive gaming systems
  • Touch-based and multimedia installations

Connectivity

  • 32 programmable inputs via 5 mm screw terminals
  • Dedicated connector for trackball and spinner
  • Full-speed USB 2.0 interface
  • No matrix, no key ghosting

Operation modes

  • USB keyboard/mouse mode
  • Dual gamepad mode
  • Dual Xinput mode

Configuration

  • WinIPAC configuration software (Windows and Mac)
  • Flash memory retention of settings after power-off
  • Programmable for key codes, mouse buttons, volume, power, sleep, and wake functions
  • Integrated Shift function to assign secondary functions to any input

Diagnostics & installation

  • Built-in diagnostic LED providing instant input and wiring status feedback
  • Powered via USB, no external power supply required
  • No drivers needed, compatible with Windows, macOS, and Linux

Compatibility

  • Fully compatible with Proxima media server and Waves System devices
