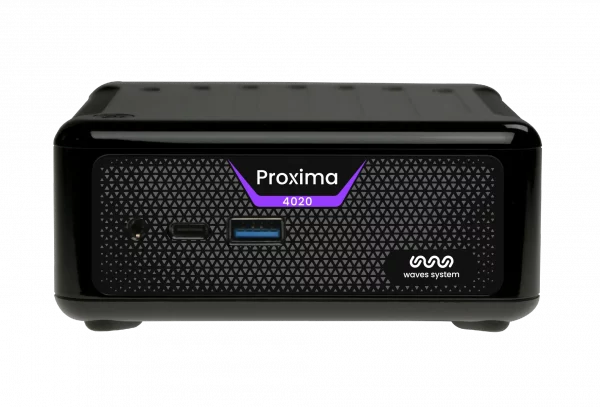

Proxima 4020

  • 2x WUXGA media server for professional applications in museums, restaurants, fitness and retail
  • Sync frame.
  • Soft edge and integrated warping.
  • Control the media server from your Crestron or Control4 PLC via the OSC API.
  • Designed and manufactured in France by Waves System.

Download the datasheet



Description
Applications
Spécifications
Vidéos / Ressources

Efficient

The Proxima 4020 media server features the most intuitive composer on the market. Connect to composer from your remote desktop and easily create a video projection with 2 video projectors. The soft-edge and sync frame offer exceptional rendering. The composer also includes a 15×15 warping grid to conform the video to a 3D structure. The NDI input allows the import of streams from other machines such as generative and interactive video engines. Perfect loops and fade transitions ensure broadcast continuity.

Integrated with other systems

The OSC API allows you to wake or put to sleep as well as launch pre-recorded sequences.

Compact

The compact format of the Proxima 4020 media server allows it to be installed as close as possible to video projectors on the ceiling, for example. You save cables and money.

Reliable and easy to setup

The Proxima 4020 media server is designed for 24/7 operation. It is robust to power outages. The Linux OS is mastered, updates are at the customer’s initiative. The product is guaranteed for 3 years.



Proxima40204040
Mapped streams24
input video cardoptionnal
4 additional video outputsoptionnal



  • Theme parks, museums, retail: videomapping, mapping on object.
  • Restaurants: video projections on tables.
  • Event: product launch, generative videos with the rythm of the music.

Interfacing and connectivity

  • 2  HDMI 2.1 video outputs, connecteur type-A  (up to 2xWUXGA@60Hz)
  • 4 USB host:
    • 1 USB Host 4.0 Super Speed (10 Gbps), type-C receptacle
    • 1 USB Host 3.2 Gen 2 Super Speed (10 Gbps), type-A receptacle
    • 2 USB Host 2.0 High Speed (480 Mbps), type-A receptacle
  • 2.5 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity)
  • 1 Gbps Ethernet on RJ45 connector with status LEDs (Network, Activity)
  • Stereo audio output on a standard 3.5 mm (TRS) jack
  • DC Power supply 19V/6.32A – Plug Ø 2.1 mm / 5.5mm

Supported video outputs

  • WUXGA (1920×1200), 50/60 Hz
  • 1080p (1920 × 1080), 24/50/60 Hz
  • 1080i (1920 × 1080), 50/60 Hz
  • 720p (1280 × 720), 50/60 Hz
  • Dynamic Range: HDR10 compatible

Supported media container formats

  • Video :
    • .mp4 (MPEG-4)
    • .mkv (Matroska)
    • .mov (QuickTime)
  • Image :
    • .jpg or .jpeg (Joint Photographic Experts Group) (ISO/IEC-10918)
    • .png (Portable Network Graphics)
    • .bmp (Bitmap)
  • Audio :
    • .wav (WAV)
    • .mp3 (MPEG-Layer 3)
    • .ogg, .opus (OGG)
    • .m4a (MPEG-4 Audio)
    • .mka (Matroska)

Supported media codecs

  • Video :
    • H.265 HEVC MP-10@L5.1 up to 2×WUXGA@60fps
    • VP9 Profile-2 up to 2xWUXGA@60fps
    • H.264 AVC HP@L5.1 up to 2xWUXGA@60fps
    • HAP, HAP Alpha, HAP Q
    • Apple ProRes
    • Motion JPEG
  • Image :
    • JPEG (ISO/IEC-10918)
    • PNG
    • TIFF
  • Audio :
    • MP3 : MPEG-1/2 Audio Layer III, mono / stereo, up to 48kHz, CBR (Constant Bit Rate) or VBR (Variable Bit Rate)
    • HE-AAC-LC : High-Efficiency Advanced Audio Coding, mono / stereo, up to 96kHz

Storage

  • Hard drive: 500 Go SSD NVME M.2
  • RAM: 16 Go-DIMM DDR5 5600 MHZ

Network

  • Embedded web server:
    • Web administration :
      • Configuration
    • OSC API & embedded UDP /OSC server for video control
    • Wake On Lan
    • Embedded TCP /IP server for server shutdown (Q1 ‘24)
    • Support input NDI stream
  • Embedded NTP client for clock synch
  • IPv4 and IPv6
  • IPv4 : static or DHCP address
  • Embedded mDNS identification service (Zeroconf)

Built-in clock

  • Timekeeping when the player is not powered: up to 2 months

Audio amplifiers

  • Headphone output:
    • Maximum output power:
      • 2 × 15 mW for 32 Ω
      • 2 × 30 mW for 16 Ω
    • THD+N:
      • 0.014 % for 2 × 5 mW, 32 Ω, 1 kHz
      • 0.016 % for 2 × 10 mW, 32 Ω, 1 kHz
      • 0.022 % for 2 × 10 mW, 16 Ω, 1 kHz
      • 0.028 % for 2 × 20 mW, 16 Ω, 1 kHz

Power supply

  • Power supply input:
    • Nominal voltage: 19 V DC – 3,45 A
  • Supplied mains adapter input:
    • Voltage: from 100 V to 240 V
    • Frequency: from 50 Hz to 60 Hz

Current Consumption (19 V supplied)

  • Typical consumption in playback with its internal memory: 1,5 A
  • Recommended power supply for full use of the device – output current: 3.45 A

Thermal

  • Operating ambient temperature: from 0 to +45 °C
  • Storage temperature: from -20 to +60 °C

Dimensions

  • Width: 117,5 mm
  • Heigth: 47,85 mm
  • Depth: 110 mm

Weight

  • 572 g
